Y-UU Standard type linear bush (resin holder)

It’s standard linear bush. The material of the holder is resin and it’s available to heat-resistance temperature 80 degree. You can select rubber seal type also.

YSAA リニアシャフト ストレート
Composition of part material
External cylinder SUJ2
Holder Resin (POM;Polyoxymethylene)
Ball SUJ2
Ring seal Nitrile rubber
Stop ring Spring steel

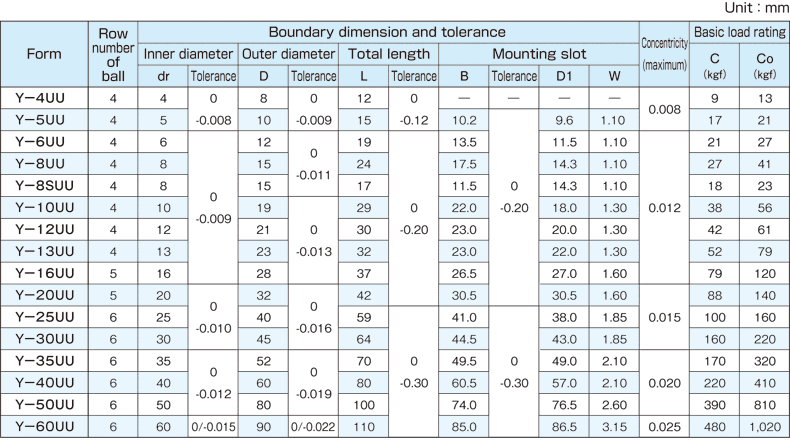

Y-UU Specification data

AR DATA
