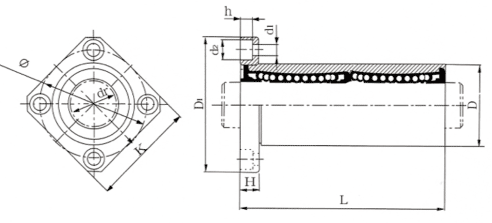

YK-LUU Square flange long type (end face)

The two resin holders are integrated into that, and then the allowance load and moment increase much more than short type. The surface has electro less nickel plating.

YSAA リニアシャフト ストレート
Composition of part material
External cylinder SUJ2
Holder Resin (POM;Polyoxymethylene)
Ball SUJ2
Ring seal Nitrile rubber

With electro less nickel plating

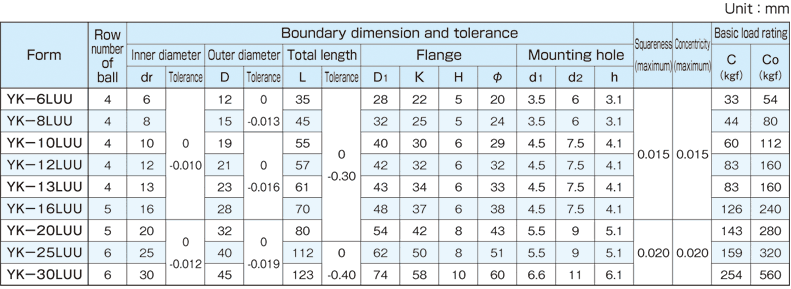

YK-LUU Specification data

AR DATA
